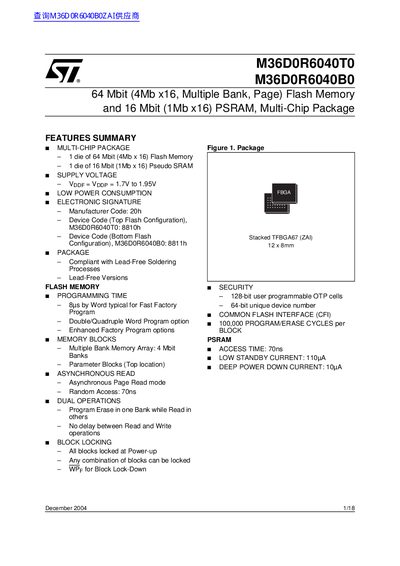

STMicroelectronics M36D0R6040T0/M36D0R6040B0 Datasheet

M36D0R6040T0 M36D0R6040B0 64 Mbit (4Mb x16, Multiple Bank, Page) Flash Memory and 16 Mbit (1Mb x16) PSRAM, Multi-Chip Package

Brand: STMicroelectronics
Category: Memory
Document type: Datasheet
Language: English
Pages: 18
File format: PDF
File size: 101 KB
Published: 07 June, 2012
Updated: 30 September, 2023
MD5 checksum: 22264311E71CFAC0CF3477C684393D22
PDF: STMicroelectronics M36D0R6040T0/M36D0R6040B0 Datasheet PDF

About this manual

The document describes the M36D0R6040T0 and M36D0R6040B0 devices, which combine a 64-Mbit Multiple Bank Flash memory and a 16-Mbit Pseudo SRAM in a single Stacked TFBGA67 package. The device is available in standard and lead-free versions compliant with RoHS directives.

What's inside

Features Summary
Summary Description
Signal Descriptions
Functional Description
Flash Memory Component
PSRAM Component
Maximum Ratings
DC and AC Parameters
Package Mechanical
Part Numbering

Specifications

Memory Configuration (Top)	64 Mbit (4Mb x16) Flash Memory and 16 Mbit (1Mb x16) PSRAM
Memory Configuration (Bottom)	64 Mbit (4Mb x16) Flash Memory and 16 Mbit (1Mb x16) PSRAM
Supply Voltage Range	1.7V to 1.95V
Random Access Time	70ns
Program/Erase Cycles	100,000 per block

Frequently asked questions

What is the device code for M36D0R6040T0?

The Device Code (Top Flash Configuration) for M36D0R6040T0 is 8810h.

What is the device code for M36D0R6040B0?

The Device Code (Bottom Flash Configuration) for M36D0R6040B0 is 8811h.

What is the manufacturer code for this device?

The Manufacturer Code is 20h.
