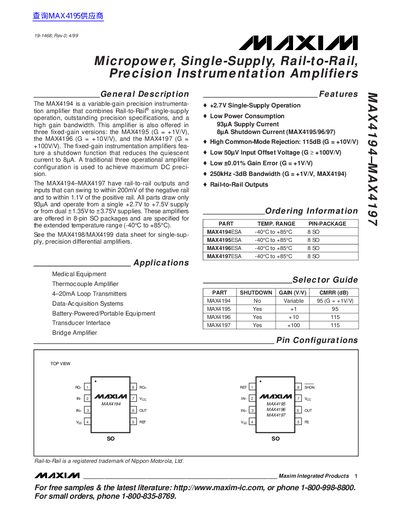

The MAX4194 is a variable-gain precision instrumentation amplifier that combines Rail-to-Rail® single-supply operation, outstanding precision specifications, and a high gain bandwidth. This amplifier is also offered in three fixed-gain versions: the MAX4195 (G = +1V/V), the MAX4196 (G = +10V/V), and the MAX4197 (G = +100V/V). The fixed-gain instrumentation amplifiers feature a shutdown function that reduces the quiescent current to 8µA. A traditional three operational amplifier configuration is used to achieve maximum DC precision. The MAX4194–MAX4197 have rail-to-rail outputs and inputs that can swing to within 200mV of the negative rail and to within 1.1V of the positive rail. All parts draw only 93µA and operate from a single +2.7V to +7.5V supply or from dual ±1.35V to ±3.75V supplies. These amplifiers are offered in 8-pin SO packages and are specified for the extended temperature range (-40°C to +85°C). See the MAX4198/MAX4199 data sheet for single-supply, precision differential amplifiers.
The document details the specifications for a family of precision instrumentation amplifiers featuring rail-to-rail inputs and outputs. These devices operate from a single +2.7V to +7.5V supply or dual supplies, offering low power consumption with quiescent currents as low as 93µA.
| Supply Voltage Range (Single) | +2.7V to +7.5V |
|---|---|
| Gain Bandwidth (MAX4194, G=+1V/V) | 250kHz |
| Operating Temperature Range | -40°C to +85°C |
| Package Type | 8-pin SO |
Yes, the fixed-gain versions feature a shutdown function that reduces current to 8µA.
It is 115dB at G = +10V/V and 118dB at G = +100V/V.
