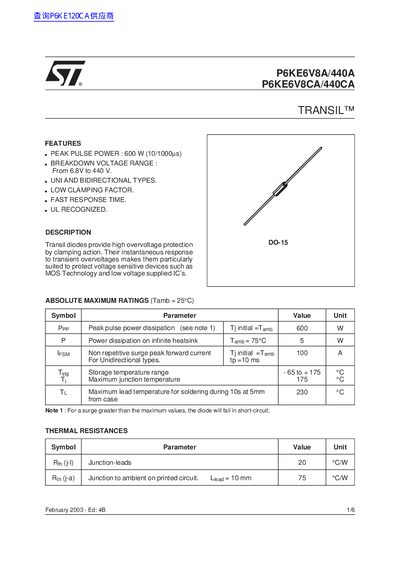

P6KE6V8A/440A P6KE6V8CA/440CA ® TRANSIL™ is a high surge pulse power clamping diode with low clamping factor and fast response time.
This document provides technical specifications for the P6KE6V8A/440A and P6KE6V8CA/440CA Transil™ diode family. These devices are designed to provide high overvoltage protection by clamping action, making them suitable for protecting voltage-sensitive devices such as MOS technology and low-voltage supplied ICs.
| Peak Pulse Power Dissipation | 600 W (10/1000us) |
|---|---|
| Breakdown Voltage Range | From 6.8V to 440 V. |
| Maximum Junction Temperature | 175 °C |
| Storage Temperature Range | -65 to +175 °C |
| Package Type | DO-15 (Plastic) |
The peak pulse power dissipation is 600 W for a 10/1000us surge.
The series includes both unidirectional and bidirectional types.
