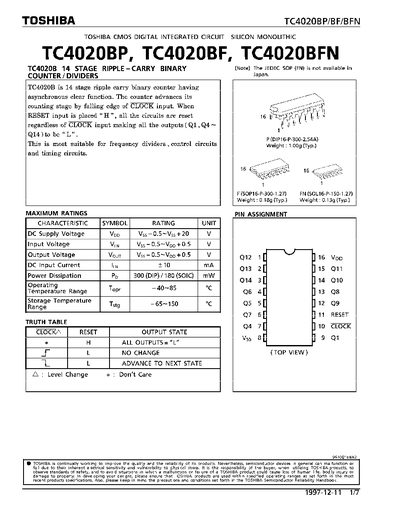

This document is a technical datasheet for the Toshiba TC4020BP, TC4020BF, and TC4020BFN devices. It describes a 14-stage ripple-carry binary counter with an asynchronous clear function, designed as a frequency divider or control circuit.
| Weight (DIP package) | 1.00g (Typ.) |
|---|
All outputs (Q1 to Q14) are reset to 'L' regardless of the CLOCK input.
It is most suitable for frequency dividers, control circuits, and timing circuits.
The maximum rating for VDD is +20V.
