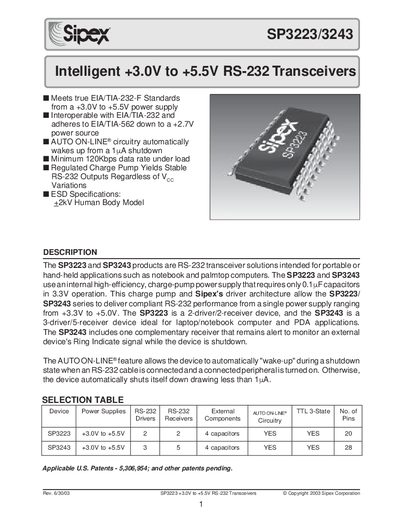

Sipex SP3223/3243 are +3.0V to +5.5V RS-232 transceivers designed for portable or handheld applications, such as notebook and palmtop computers.
The Sipex SP3223 and SP3243 are intelligent RS-232 transceiver solutions designed for portable or hand-held applications, such as notebook computers and PDAs. These devices utilize an internal high-efficiency charge-pump power supply that requires only 0.1µF capacitors in 3.3V operation, allowing compliant RS-232 performance from a single +3.3V to +5.0V power supply.
| Supply Voltage Range | +3.0V to +5.5V |
|---|---|
| Minimum Data Rate | 120Kbps |
| ESD Protection (HBM) | +2kV |
| Shutdown Current | < 1pA |
| Number of Drivers (SP3223) | 2 |
| Number of Receivers (SP3243) | 5 |
The devices require only 0.1µF capacitors in 3.3V operation.
Yes, the AUTO ON-LINE circuitry automatically wakes up from a shutdown state when an RS-232 cable is connected.
Typical values apply at +3.3V or +5.0V.
