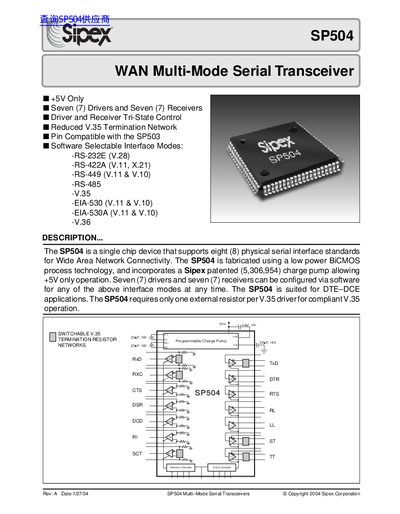

The SP504 is a single chip device that supports eight (8) physical serial interface standards for Wide Area Network Connectivity. It is fabricated using a low power BiCMOS process technology, and incorporates a Sipex patented (5,306,954) charge pump allowing +5V only operation. Seven (7) drivers and seven (7) receivers can be configured via software for any of the above interface modes at any time. The SP504 is suited for DTE-DCE applications. The SP504 requires only one external resistor per V.35 driver for compliant V.35 operation.
The Sipex SP504 is a single chip device designed for Wide Area Network Connectivity that supports eight physical serial interface standards. Fabricated using low power BICMOS process technology, it incorporates a patented charge pump allowing operation from a single +5V supply. The device features seven drivers and seven receivers that can be configured via software for various modes including RS-232E, RS-422A, RS-485, V.35, and others.
The device operates using only +5V power.
It contains seven (7) drivers and seven (7) receivers.
The maximum rate is 230.4 kbps when using an 8kΩ resistor and 2500pF capacitor.
The device operates between 0°C and +70°C.
