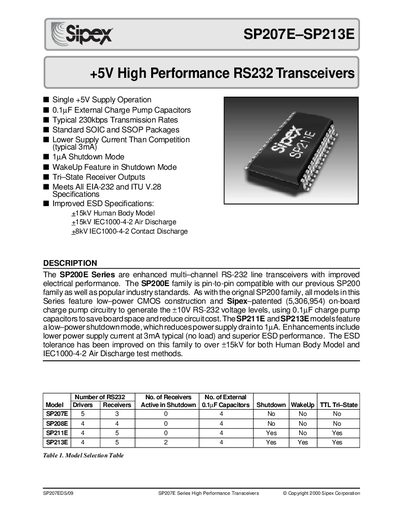

The SP207E series of high-performance transceivers are enhanced multi-channel RS-232 line transceivers with improved electrical performance.
The SP200E Series are enhanced multi-channel RS-232 line transceivers with improved electrical performance, pin-to-pin compatible with the previous SP200 family. All models feature low-power CMOS construction and Sipex-patented on-board charge pump circuitry to generate +10V RS-232 voltage levels using 0.1µF external capacitors.
The SP211E and SP213E models feature a low-power shutdown mode that reduces power supply drain to 1µA. Enhancements include lower power supply current at 3mA typical (no load) and superior ESD performance, with tolerance improved to over +15kV for both Human Body Model and IEC 1000-4-2 Air Discharge test methods.
| Supply Voltage | 4.50 to 5.50 Volts |
|---|---|
| Operating Temperature (Commercial) | 0°C to +70°C |
| Operating Temperature (Extended) | -40°C to +85°C |
| Typical Transmission Rate | 230 kbps |
| ESD Tolerance (Human Body) | +15kV |
| ESD Tolerance (Air Discharge) | +15kV |
The typical transmission rate is 230 kbps.
The devices use 0.1µF external charge pump capacitors.
Yes, the SP213E includes a Wake-Up function which keeps two receivers active in the shutdown mode.
