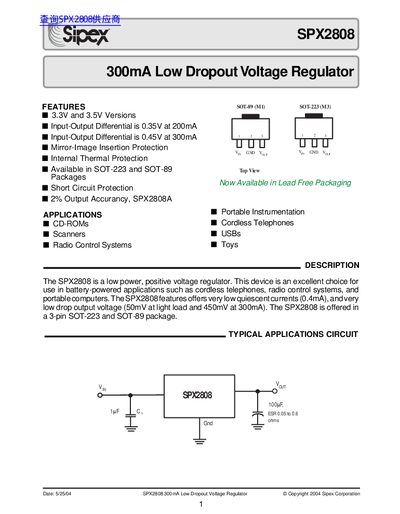

Sipex SPX2808 Datasheet

The SPX2808 is a low power, positive voltage regulator. This device is an excellent choice for use in battery-powered applications such as cordless telephones, radio control systems, and portable computers. It features very low quiescent currents and very low dropout output voltage.

Brand: Sipex
Category: Power Management
Document type: Datasheet
Language: English
Pages: 7
File format: PDF
File size: 49 KB
Published: 12 June, 2012
Updated: 28 September, 2023
MD5 checksum: 12932EC7B2BB3187B88123F8B41CF41C
PDF: Sipex SPX2808 Datasheet PDF

About this manual

The SPX2808 is a positive voltage regulator designed for battery-powered applications such as cordless telephones, radio control systems, and portable instrumentation. It features very low quiescent currents (0.4mA) and low dropout voltages of 0.35V at 200mA or 0.45V at 300mA.

What's inside

Features
Applications
Description
Absolute Maximum Ratings
Electrical Characteristics
Typical Performance Characteristics
Application Information
Package Dimensions

Specifications

Output Current	300mA
Quiescent Current	100 pA to 200 pA
Output Voltage Accuracy	2% or 3%
Dropout Voltage (at 300mA)	0.45V

Frequently asked questions

What is the maximum input supply voltage for the SPX2808?

The device can operate with an input supply voltage ranging from -0.3V to +30V.

What is the minimum input-to-output differential voltage required at a 300mA load?

The device requires an input-output differential of 0.45V when supplying 300mA.
