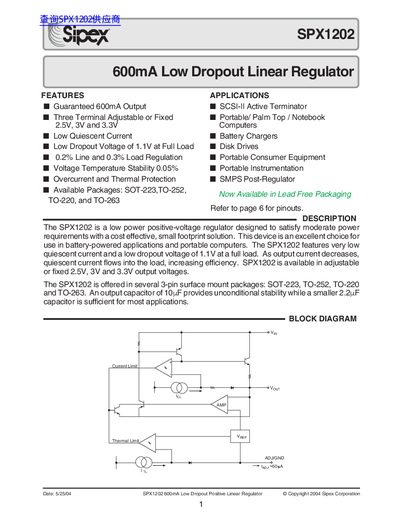

SPX1202 is a low power positive-voltage regulator designed to satisfy moderate power requirements with a cost effective, small footprint solution. This device is an excellent choice for use in battery-powered applications and portable computers.
The document describes the Sipex SPX1202, a positive-voltage linear regulator designed for moderate power requirements with a focus on cost-effectiveness and small footprint. It is particularly suitable for battery-powered applications, portable computers, and SCSI-II active terminators due to its low quiescent current and low dropout voltage of 1.1V at full load.
The SPX1202 is offered in several packages including SOT-223, TO-252, TO-220, and TO-263. It features overcurrent and thermal protection, with adjustable or fixed output voltages of 2.5V, 3V, and 3.3V. The datasheet provides detailed electrical characteristics, typical performance graphs, application information regarding capacitor selection and ripple rejection, and mechanical package dimensions.
| Output Current | 600mA |
|---|---|
| Dropout Voltage (Full Load) | 1.1V |
| Fixed Output Voltages | 2.5V, 3V and 3.3V |
| Line Regulation (Typical) | 0.2% |
| Load Regulation (Typical) | 0.3% |
| Operating Junction Temperature | -40°C to +125°C |
The device is available in adjustable or fixed 2.5V, 3V and 3.3V output voltages.
The SPX1202 is offered in SOT-223, TO-252, TO-220, and TO-263 packages.
The dropout voltage is 1.1V when operating at a full load of 600mA.
