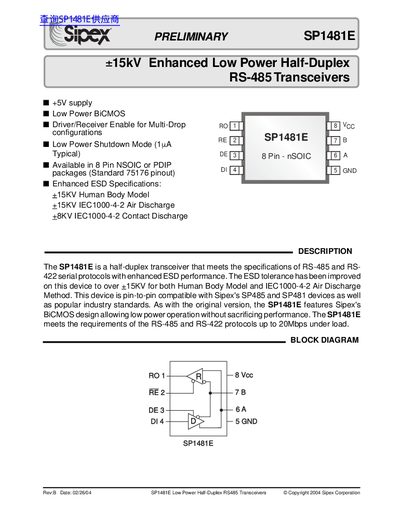

The SP1481E is a half-duplex transceiver that meets the specifications of RS-485 and RS-422 serial protocols with enhanced ESD performance. The ESD tolerance has been improved on this device to over +15KV for both Human Body Model and IEC1000-4-2 Air Discharge Method. This device is pin-to-pin compatible with Sipex's SP485 and SP481 devices as well as popular industry standards. As with the original version, the SP1481E features Sipex's BiCMOS design allowing low power operation without sacrificing performance. The SP1481E meets the requirements of the RS-485 and RS-422 protocols up to 20Mbps under load.
The Sipex SP1481E is a half-duplex differential transceiver designed to meet the specifications of RS-485 and RS-422 serial protocols. Fabricated with a proprietary BiCMOS process, it offers low power operation and enhanced ESD specifications, including tolerance to +15kV for the Human Body Model and IEC 1000-4-2 Air Discharge. The device is pin-to-pin compatible with Sipex's SP485 and SP481 devices.
| Maximum Data Rate | 20 Mbps |
|---|---|
| ESD Tolerance (Human Body Model) | +15kV |
| ESD Tolerance (IEC 1000-4-2 Air Discharge) | +15kV |
| ESD Tolerance (IEC 1000-4-2 Contact Discharge) | +8kV |
| Operating Temperature (Industrial) | -40°C to +85°C |
| Operating Temperature (Military) | -40°C to +125°C |
| Shutdown Supply Current | 10 pA |
The SP1481E meets the specifications of RS-485 and RS-422 serial protocols.
Yes, it is pin-to-pin compatible with Sipex's SP485 and SP481 devices.
Shutdown mode is entered by applying a logic LOW to the DE pin and a logic HIGH to the RE pin.
