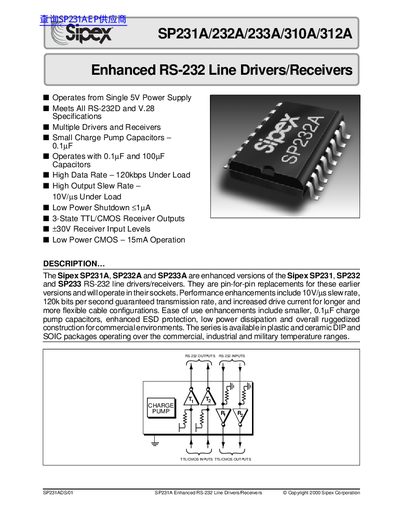

This datasheet is the technical specifications of Sipex SP231A/232A/233A/310A/312A.
The Sipex SP231A, SP232A, SP233A, SP310A, and SP312A are enhanced versions of earlier RS-232 line drivers and receivers. They offer performance improvements such as a 10V/µs slew rate and a guaranteed transmission rate of 120 kbps under load. The series also features ease-of-use enhancements including smaller charge pump capacitors (0.1 µF) and enhanced ESD protection.
| Maximum Data Rate | 120 kbps |
|---|---|
| Output Voltage Swing | +5 to +9 Volts |
| Voltage Range (RS-232 Input) | -30 to +30 Volts |
| Shutdown Supply Current | < 10 µA |
The devices guarantee a transmission rate of 120 kbps under load.
Yes, the SP232A, SP233A, SP310A, and SP312A models can operate from a single +5V supply.
The devices are designed to work with 0.1 µF charge pump capacitors.
