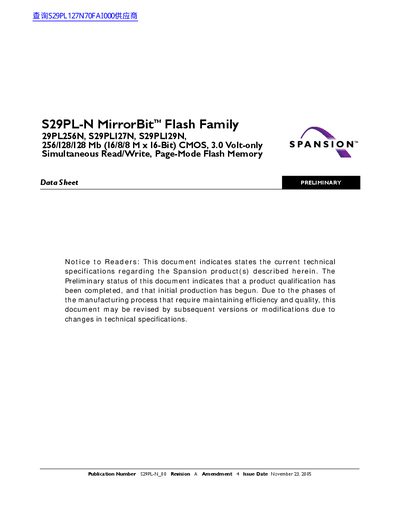

Spansion S29PL-N MirrorBit Flash Family Data Sheet

S29PL-N MirrorBit™ Flash Family is a 256/128/128 Mb (16/8/8 M x 16-Bit) CMOS, 3.0 Volt-only Simultaneous Read/Write, Page-Mode Flash Memory produced by Spansion LLC.

Brand: Spansion
Category: Flash Memory
Document type: Datasheet
Language: English
Pages: 85
File format: PDF
File size: 925 KB
Published: 07 June, 2012
Updated: 30 September, 2023
MD5 checksum: 5D6A14EEDB1F2B85FC39A6C72E81791A
PDF: Spansion S29PL-N MirrorBit Flash Family Data Sheet PDF

About this manual

This document is a preliminary data sheet for the Spansion S29PL-N MirrorBit Flash Family, which includes the S29PL256N, S29PL127N, and S29PL129N models. These devices are 3.0 Volt-only CMOS flash memories fabricated using 110 nm technology, offering simultaneous read/write operations with zero latency on two separate banks.

What's inside

General Description
Distinctive Characteristics
Typical Performance Characteristics
Hardware Features
Security Features
Package Options
Device Operations
Advanced Sector Protection
Power Conservation Modes

Specifications

Voltage Range (Read/Erase/Program)	2.7 — 3.6 V
Voltage Range (PL-N MCP products)	2.7 — 3.1 V
Data Retention	20 years Typical
Cycling Endurance	100,000 Cycles per Sector
Process Technology	0.11 um Process Technology

Frequently asked questions

What is the typical random access time for the S29PL-N family?

The typical random access times are 65 ns, 70 ns, and 80 ns respectively.

Does the S29PL129N support dual chip enable inputs?

Yes, the S29PL129N device offers dual chip enable inputs (CE1# and CE2#).

What is the typical sector erase time for a 32-Kword sector?

The typical sector erase time for a 32-Kword sector is 300 ms.
