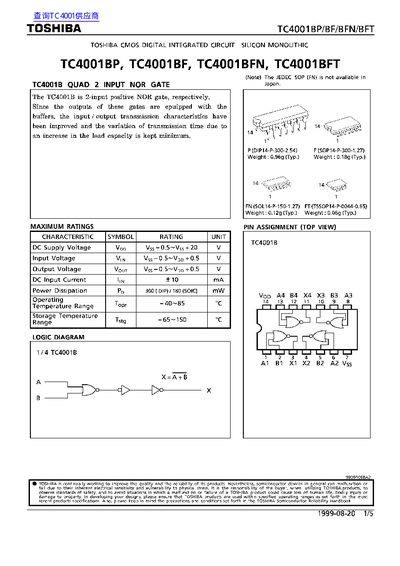

This document is a technical datasheet for the TOSHIBA TC4001B series of CMOS digital integrated circuits. The device functions as a Quad 2-Input Positive NOR Gate and features improved input/output transmission characteristics due to equipped buffers.
The datasheet provides maximum ratings, recommended operating conditions, static and dynamic electrical characteristics, logic diagrams, and outline drawings for four package types: DIP14, SOP14 (200mil), SOP14 (150mil), and TSSOP14.
| Logic Function | Quad 2 Input NOR Gate |
|---|---|
| DC Supply Voltage (Vop) | -0.5 to Vs5 + 20 V |
| Operating Temperature Range (opr) | -40 to 85 °C |
| Storage Temperature Range (Tstg) | -65 to 150 C |
| Propagation Delay Time (tPHL) at Vcc=5V | Max. 200 ns |
| Input Capacitance (Cin) | Max. 75 pF |
The maximum DC supply voltage rating is +5.5 V.
A DIP package typically weighs 0.96g.
