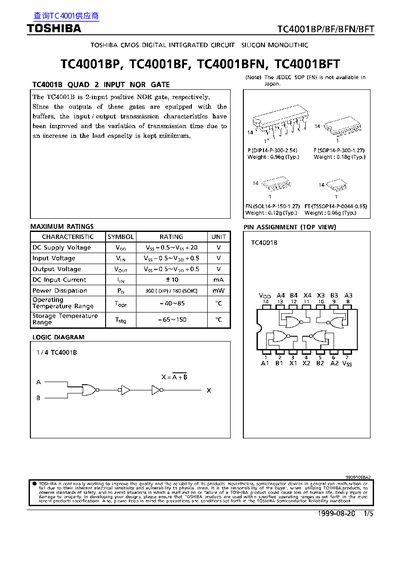

This document is a technical datasheet for the Toshiba TC4001B series of CMOS digital integrated circuits. The device functions as a quad 2-input positive NOR gate with improved input/output transmission characteristics due to equipped buffers.
The datasheet provides maximum ratings, recommended operating conditions, static and dynamic electrical characteristics at various temperatures (40°C, 25°C, 85°C), and pin assignments for the TC4001B. It also includes outline drawings and weights for four available packages: DIP-14, SOP-14 (200mil), SOP-14 (150mil), and TSSOP-14.
| Device Type | Quad 2-input positive NOR gate |
|---|---|
| DC Supply Voltage (Max) | +5.5 V |
| Operating Temperature Range | -40 to +85 °C |
| Storage Temperature Range | -65 to +150 C |
| Output Transition Time (Typ) | 35 ns @ Vcc=10V |
The maximum DC supply voltage rating is 18 V.
A typical DIP package weighs 0.96g.
