KBPC40, 50GS SERIES is a glass passivated in-line bridge rectifier produced by Won-Top Electronics. This series of products has the characteristics of low forward voltage drop, high current, high reliability, high surge current and saving mounting space.
This document provides a technical overview of the KBPC40 and KBPC50 series glass passivated in-line bridge rectifiers manufactured by Won-Top Electronics. Key features include low forward voltage drop, high current capability, and suitability for printed circuit board mounting.

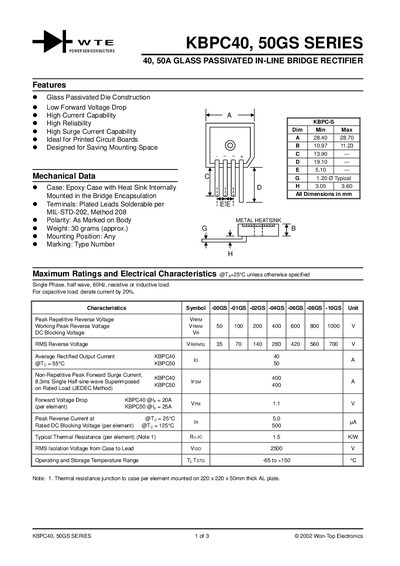

The datasheet lists maximum ratings such as peak repetitive reverse voltage up to 1000V and average rectified output currents of 40A or 50A depending on the model. It also includes electrical characteristics tables, thermal resistance data, typical forward and reverse characteristic curves, and ordering information for various package types.
| Series Name | KBPC40, 50GS Series |
|---|---|
| Product Type | Glass Passivated In-Line Bridge Rectifier |
| Peak Reverse Current at Rated DC Blocking Voltage | 5.0 mA |
| Typical Thermal Resistance (per element) | 1.5 K/W |
| RMS Isolation Voltage from Case to Lead | 2500 V |
| Operating and Storage Temperature Range | -65 to +150 °C |
The operating and storage temperature range for these rectifiers is from -65 to +150 °C.
No, Won-Top Electronics states not to use these products in life support equipment without express written approval.
