The 1.5SMCJ series 1500W surface mount transient voltage suppressors have features of glass passivated die construction, 1500W peak pulse power dissipation, 5.0V-170V standoff voltage, uni- and bi-directional versions available, excellent clamping capability, fast response time and UL flammability classification
The 1.5SMCJ series are 1500W surface‑mount transient voltage suppressors offered in both unidirectional and bidirectional versions. Key features include a glass‑passivated die, a wide standoff voltage range of 5.0 V‑170 V, and excellent clamping capability.

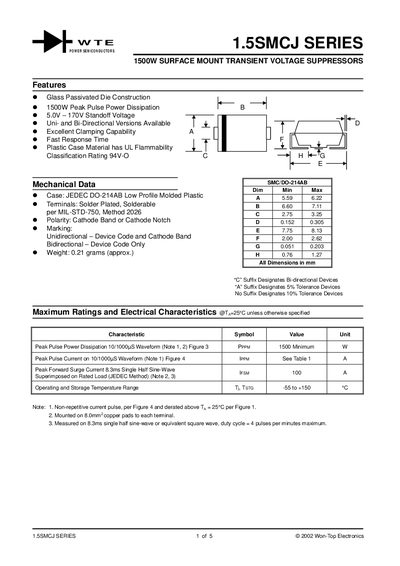

The datasheet lists mechanical data (JEDEC DO‑214AB case), electrical ratings (1500 W peak pulse power, -55 °C to +150 °C operating range), recommended footprints, and ordering information for tape‑and‑reel packaging. A warning notes that these devices are not approved for life‑support equipment without written approval.
| Peak Pulse Power Dissipation | 1500 W |
|---|---|
| Standoff Voltage Range | 5.0 V – 170 V |
| Case Package | JEDEC DO‑214AB Low Profile Molded Plastic |
| Weight | 0.21 g (approx.) |
The series is rated for a peak pulse power dissipation of 1500 W.
They use a JEDEC DO‑214AB low‑profile molded plastic case.
The minimum recommended footprint is 0.060 in (1.52 mm) and the maximum is 0.185 in (4.69 mm).
No, they are not authorized for use in life‑support equipment without written approval.
