The P4SMAJ series is a surface mount transient voltage suppressor with features including 400W peak pulse power dissipation, 5.0V-170V standoff voltage, availability in uni- and bi-directional versions, excellent clamping capability, and fast response time.
The P4SMAJ series from WTE offers 400 W peak pulse power dissipation transient voltage suppressors in both unidirectional and bi‑directional versions. Features include glass‑passivated die construction, fast response time, and UL‑rated plastic case material.

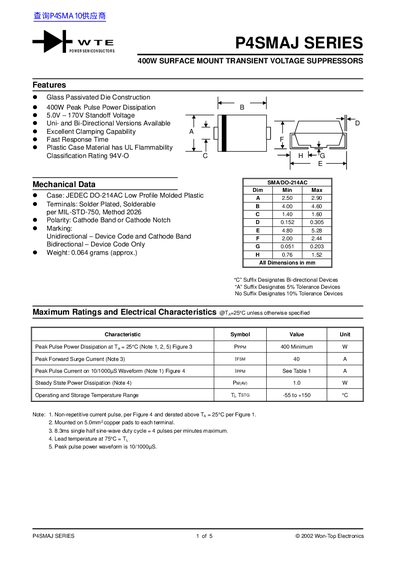

Mechanical data specify a JEDEC DO‑214AC low‑profile molded plastic package with dimensions from 0.050 in to 0.083 in and a weight of about 0.064 g. Maximum ratings cover a standoff voltage range of 5.0 V‑170 V and an operating temperature range of –55 °C to +150 °C. The handbook also lists detailed electrical characteristics, peak‑pulse derating curves, ordering part numbers, and recommended footprints.
| Peak Pulse Power Dissipation | 400 W |
|---|---|
| Standoff Voltage Range | 5.0 V – 170 V |
| Package Type | JEDEC DO‑214AC Low Profile Molded Plastic |
| Weight | 0.064 g (approx.) |
| Maximum Clamping Voltage | See device tables (e.g., 9.2 V for P4SMAJ5.0A) |
P4SMAJ devices are offered in tape‑and‑reel packaging: 1800 units per T1 reel and 7500 units per T3 reel.
No, the devices are not authorized for use in life‑support equipment without written approval from WTE.
