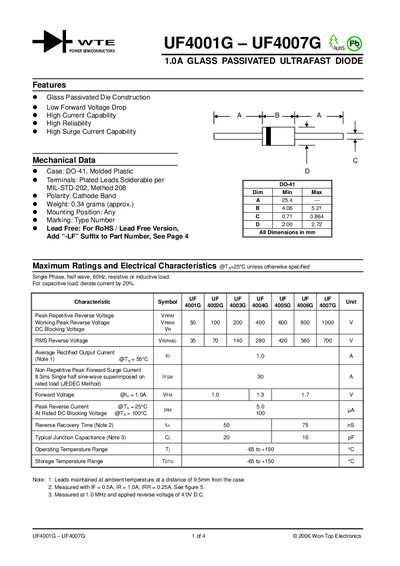

This document describes the features and characteristics of the UF4001G - UF4007G series glass passivated ultrafast diodes, including glass passivated die construction, low forward voltage drop, high current capability, high reliability, and high surge current capability.
The UF4001G–UF4007G series are glass‑passivated ultrafast diodes from Won‑Top, offering low forward voltage drop, high surge current capability, and high reliability for single‑phase half‑wave applications.
The datasheet includes mechanical dimensions, maximum ratings, electrical characteristics, marking and packaging details, and ordering information for each part number.
| Case Type | DO-41, Molded Plastic |
|---|---|
| Weight | 0.34 g (approx.) |
| Average Rectified Output Current | 10 A |
| Forward Voltage at 1 A | 1.0 V – 1.7 V |
| Reverse Recovery Time | 50 ns – 75 ns |
| Operating Temperature Range | -65 °C to +150 °C |
The series is rated for an average rectified output current of 10 A.
UF4001G is offered in Tape & Reel (5000 units), Tape & Box (5000 units), and Units/Box (1000 units).
They operate from –65 °C to +150 °C.
