PB1000G – PB1010G is a high current, high surge current, high dielectric strength, ideal for printed circuit board application bridge rectifier produced by Won-Top Electronics.
The PB1000G‑PB1010G series are 10 A glass‑passivated bridge rectifiers designed for PCB mounting. They feature high current capability, high surge current capability, and a molded plastic case with UL‑94 V‑0 flammability rating.

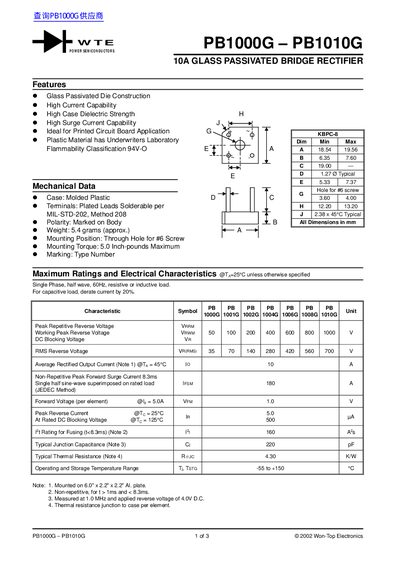

The datasheet lists maximum ratings, typical forward and reverse characteristics, mechanical dimensions, and ordering details such as package type (Square Bridge) and shipping quantity (200 units per box). It also includes a safety warning that the devices are not approved for life‑support equipment without written approval.
| Average Rectified Output Current (45 °C) | 10 A |
|---|---|
| Forward Voltage (5 A) | 1.0 V |
| Typical Junction Capacitance | 220 pF |
| Typical Thermal Resistance | 4.30 K/W |
| Operating Temperature Range | -55 °C to +150 °C |
| Weight | 5.4 g (approx.) |
| Mounting Torque | 5.0 in‑lb (maximum) |
The recommended maximum mounting torque is 5.0 in‑lb.
No, they are not authorized for use in life‑support equipment without written approval.
