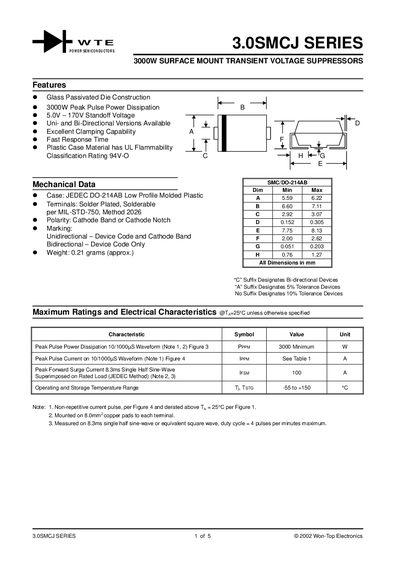

This document describes the features and characteristics of the 3.0SMCJ series 3000W surface mount transient voltage suppressors produced by Won-Top Electronics, including glass passivated die construction, 3000W peak pulse power dissipation, 5.0V-170V standoff voltage, uni- and bi-directional versions, excellent clamping capability, fast response time, etc.
This document provides technical specifications and electrical characteristics for the 3.0SMCJ Series, a line of 3000W peak pulse power dissipation surface mount Transient Voltage Suppressors (TVS). The components are designed with glass passivated die construction and feature excellent clamping capability.
| Standoff Voltage Range | 5.0V - 170V |
|---|---|
| Peak Forward Surge Current | 100 A (8.3ms Single Half Sine-Wave) |
| Package Type | JEDEC DO-214AB Low Profile Molded Plastic |
The series covers a standoff voltage range from 5.0V to 170V.
The peak forward surge current (IFSM) is rated at 100 A for an 8.3ms single half sine-wave.
