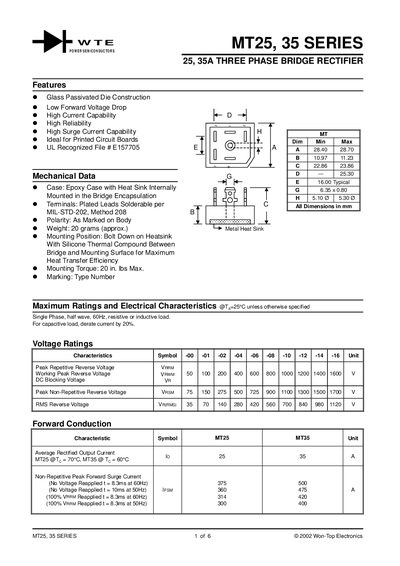

MT25, 35 series are three-phase bridge rectifiers produced by Won-Top Electronics. They have low forward voltage drop, high current capability, high reliability, high surge current capability, and are ideal for printed circuit boards.
The MT25/MT35 series are three‑phase bridge rectifiers offered by Won-Top Electronics. They feature glass‑passivated die construction, low forward voltage drop, high current capability, and are UL‑recognized. The devices are supplied in epoxy cases with internal heat‑sinks and plated lead terminals for PCB mounting.
Key electrical ratings include peak repetitive reverse voltage up to 1600 V, average rectified output current up to 35 A, and non‑repetitive surge currents up to 500 A. Thermal specifications cover operating temperatures from –40 °C to +150 °C and recommended mounting with silicone thermal compound for optimal heat transfer.
| Operating Temperature Range (Tj) | -40 °C to +150 °C |
|---|---|
| Weight | ≈20 g |
The recommended mounting torque is 20 in‑lb maximum.
The device weighs approximately 20 grams.
Use silicone thermal compound between the bridge and the heatsink for maximum heat‑transfer efficiency.
