SS1020FL-SS10100FL surface mount Schottky barrier diode has the characteristics of low turn-on voltage, fast switching, PN junction protection ring and so on, suitable for surface mount application.

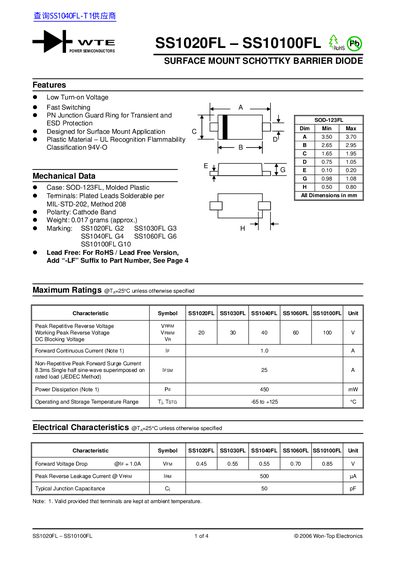

This datasheet describes the surface‑mount Schottky barrier diodes SS1020FL, SS1030FL, SS1040FL, SS1060FL and SS10100FL. It lists key features such as low turn‑on voltage, fast switching, PN‑junction guard ring and UL‑recognized plastic material, and provides the mechanical data for the SOD‑123FL package.
Electrical specifications include peak repetitive reverse voltage, forward continuous current, power dissipation, forward voltage drop and temperature ranges. Packaging information covers tape‑and‑reel dimensions, reel quantities and ordering codes, with guidance for ordering RoHS/lead‑free versions by adding the “‑LF” suffix.
| Forward Continuous Current (IF) | 1.0 A |
|---|---|
| Power Dissipation (Pa) | 450 mW |
| Operating Temperature Range | -65 °C to +125 °C |
| Forward Voltage Drop @ IF=1.0 A | 0.45 V (SS1020FL) – 0.85 V (SS10100FL) |
The SS1020FL diode is supplied in a SOD‑123FL tape‑and‑reel package, 3000 units per reel.
Add the “‑LF” suffix to the part number (e.g., SS1020FL‑T1‑LF) to request the lead‑free version.
The cathode is indicated by a band on the diode package.
The recommended footprint is the SOD‑123FL molded‑plastic case with dimensions 0.50 mm × 0.80 mm.
