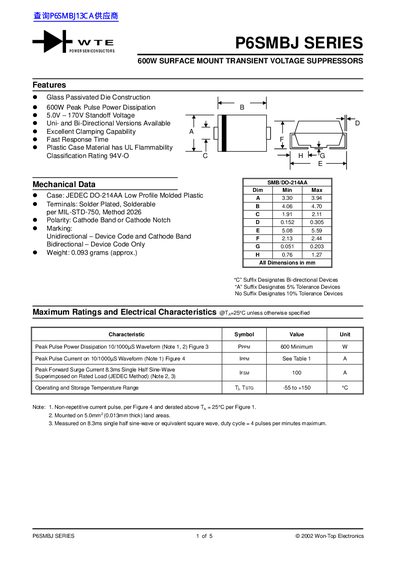

The P6SMBJ series is a 600W surface mount transient voltage suppressor with glass passivated die construction, 5.0V-170V standoff voltage, uni- and bidirectional versions available, excellent clamping capability, fast response time and plastic case material with UL flammability classification rating 94V-O.
The P6SMBJ series from Won-Top Electronics provides 600 W peak pulse power dissipation TVS diodes in surface‑mount packages. Features include glass‑passivated die construction, fast response time, and a plastic case with UL flammability rating 94V‑O. The devices support standoff voltages from 5.0 V to 170 V and operate from –55 °C to +150 °C.
Mechanical data, maximum ratings, and detailed uni‑directional and bi‑directional part tables are provided, along with recommended footprints and ordering information for SMB tape‑and‑reel packaging.
| Peak Pulse Power Dissipation | 600 W |
|---|---|
| Standoff Voltage Range | 5.0 V – 170 V |
| Response Time | Fast |
| Case Material Rating | UL 94V‑O |
| Operating Temperature Range | -55 °C to +150 °C |
| Weight (typical) | 0.093 g |
The devices are rated for a peak pulse power dissipation of 600 W.
They support standoff voltages from 5.0 V up to 170 V.
P6SMBJ parts are offered in SMB tape‑and‑reel formats, e.g., 500 units per 7‑inch reel (T1) or 3000 units per 13‑inch reel (T3).
The minimum recommended footprint is 0.050 mm (1.27 mm).
