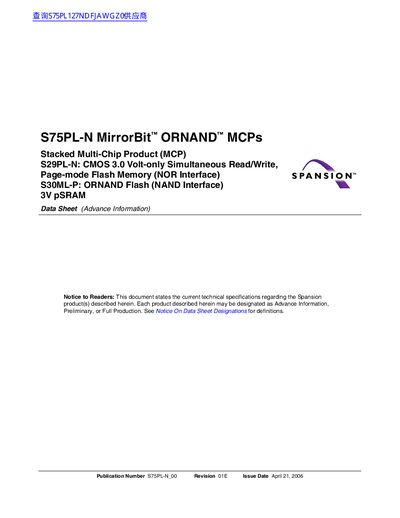

Spansion S75PL-N MirrorBit ORNAND MCPs Data Sheet

About this manual

The document describes the S75PL-N MirrorBit ORNAND Stacked Multi-Chip Product (MCP), which integrates three devices: the S29PL-N CMOS 3.0 Volt-only Page-mode Flash Memory with NOR interface, the S30ML-P ORNAND Flash with NAND interface, and a 3V pSRAM. The product is designed for applications requiring simultaneous read/write capabilities.

What's inside

• Notice On Data Sheet Designations
• Features
• General Description
• Ordering Information
• Valid Combinations
• Block Diagram
• Connection Diagrams

Frequently asked questions

What is the operating temperature range for this product?

The device operates within a temperature range of -25°C to +85°C.

What is the height and pitch of the MCP BGA package?

The package has a 1.4 mm height and a 0.8 mm pitch.

What is the maximum temperature exposure limit for prolonged periods?

The package body must not be exposed to temperatures above 150°C for prolonged periods.
