This document is about the specifications of LS 3380, LY 3380, LG 3380. It includes product characteristics, model, package, package color, emission color, luminous intensity and other information.

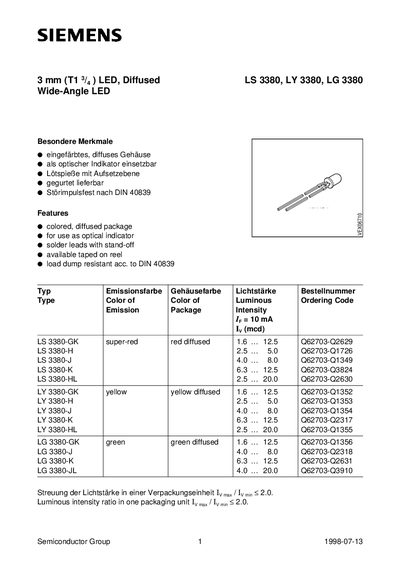

This datasheet covers three models of diffused wide-angle LEDs: the super-red LS 3380, yellow LY 3380, and green LG 3380. These components feature a colored, diffused package suitable for use as optical indicators and are available with solder leads featuring a stand-off level. This manual is written in German.
| Operating temperature range | - 55 … + 100 °C |
|---|---|
| Junction temperature | + 100 °C |
| Forward current (IF) | 40 mA |
| Surge current (IFM) | 0.5 A |
| Reverse voltage (VR) | 5V |
| Power dissipation (Ptot) | 140 mW |
| Thermal resistance (Rth JA) | 400 K/W |
| Viewing angle at 50 % IV | 100 deg. |
They have a colored, diffused package for use as optical indicators, solder leads with stand-off, and are load dump resistant.
Yes, they are available taped on reel.
