This document is about LR B480, LS B480, LY B480, LG B480 LED specifications, including color, package, luminous intensity and other information.

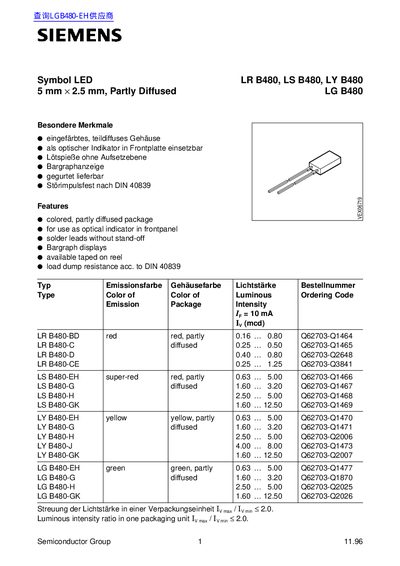

This document provides technical specifications for the Siemens LR B480, LS B480, LY B480, and LG B480 series of LEDs. These components are 5 mm x 2.5 mm symbol LEDs featuring a partly diffused package suitable for use as optical indicators in front panels.
The datasheet details maximum ratings such as operating temperature ranges from -55°C to +100°C, forward current limits up to 40 mA, and reverse voltage capabilities of 5V. It also lists specific characteristics including peak wavelengths (ranging from 565 nm for green to 660 nm for red), viewing angles of 100 degrees, and typical forward voltages between 1.6 V and 2.6 V depending on the color.
| Package Size | 5 mm x 2.5 mm |
|---|
The package measures 5 mm by 2.5 mm.
Each unit weighs approximately 0.25 g.
