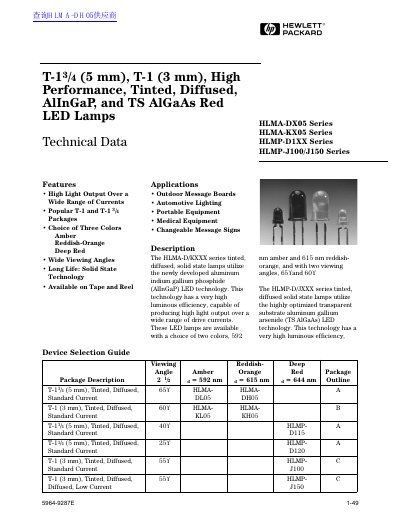

This PDF file introduces the technical data of HLMA-DX05 series, HLMA-KX05 series, HLMP-D1XX series and HLMP-J100/J150 series T-13/4 (5 mm), T-1 (3 mm) high performance, tinted, diffused, AlInGaP and TS AlGaAs red LED lamps. These LED lamps have high light output, wide light output range, two colors, two viewing angles and long life.
This document provides technical specifications for a series of high-performance tinted, diffused solid state red LED lamps from Hewlett-Packard. The product line includes the HLMA-D/KXXX series utilizing aluminum indium gallium phosphide (AlInGaP) technology and the HLMP-D/JXXX series using transparent substrate aluminum gallium arsenide (TS AlGaAs) technology.
| Technology Type (HLMA-D/KXXX) | AlInGaP LED technology |
|---|---|
| Technology Type (HLMP-D/JXXX) | TS AlGaAs LED technology |
| Available Colors | Amber, Reddish-Orange, Deep Red |
| DC Forward Current (Absolute Max) | 50 mA |
| Peak Forward Current (HLMP Series) | 300 mA |
| Junction Temperature (Max) | 110 °C |
Drive currents between 10 mA and 30 mA are recommended for best long term performance.
The color is deep red at a dominant wavelength of 644 nm.
They are suitable for outdoor message boards, automotive lighting, portable equipment, medical equipment, and changeable message signs.
