INA-01100 is a low noise silicon bipolar Monolithic Microwave Integrated Circuit (MMIC) feedback amplifier chip. It is designed for narrow or wide bandwidth indus- trial and military applications that require high gain and low noise IF or RF amplification.

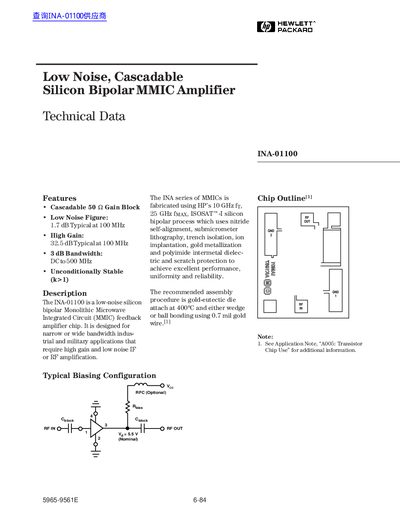

The INA-01100 is a low-noise silicon bipolar MMIC amplifier designed for industrial and military applications requiring high gain and low noise. It features a 32.5 dB typical gain at 100 MHz and a 3 dB bandwidth from DC to 500 MHz. The datasheet includes electrical specifications, typical performance graphs, and biasing configuration details. It is fabricated using HP’s ISOSAT™-I process for reliability and performance.
| Gain | 32.5 dB typical at 100 MHz |
|---|---|
| Noise Figure | 1.7 dB typical at 100 MHz |
| 3 dB Bandwidth | DC to 500 MHz |
| Device Voltage | 40 to 7.0 V |
| Power Dissipation | 400 mW |
32.5 dB typical at 100 MHz.
1.7 dB typical at 100 MHz.
DC to 500 MHz.
30 to 40 mA.
