This file introduces the installation requirements of Varian Saturn GC/MS, including space and weight requirements, power requirements, operating environment requirements, temperature/humidity requirements, particulate matter requirements, vibration requirements, exhaust system requirements, etc.

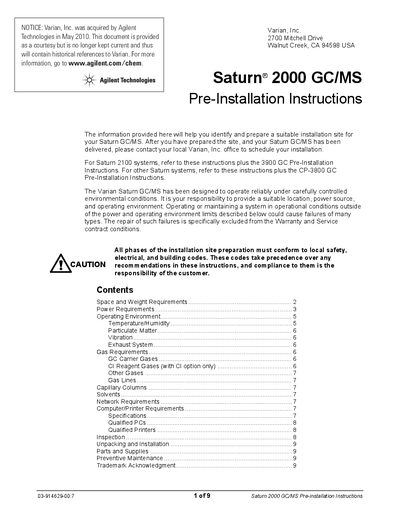

This document provides guidance on identifying and preparing a suitable installation site for the Agilent Saturn 2000 GC/MS system. It details specific requirements for space dimensions, weight capacity of workbenches, and necessary clearances around the instrument components to ensure safe operation and maintenance access.
The guide also outlines critical power requirements, including dedicated fourplex single-phase power sources with earth grounds, voltage ranges (100-130 Vac or 200-260 Vac), and amperage limits for various system components. Additionally, it specifies the necessary operating environment parameters, such as temperature (18° to 21 °C) and relative humidity (40% to 80%), along with ventilation and exhaust system considerations.
| Optimum Operating Temperature | 18° to 21 °C (65° and 70 °F) |
|---|---|
| Relative Humidity Range | 40% to 80% |
| Mass Spectrometer Power Rating (120V) | 12A |
| CP-3800 Gas Chromatograph Power Rating (120V) | 20A |
| Average Steady-State Heat Load | 6000 BTUs |
Table 1 in this document identifies specific dimensions (Height, Width, Depth) and weights for each component, such as the Saturn MS weighing 66 lb.
Two dedicated fourplex single-phase power sources with earth grounds hard-wired to the main power panel ground are required.
An additional 76 cm (30 in.) of vertical clearance is required to allow for routine maintenance.
