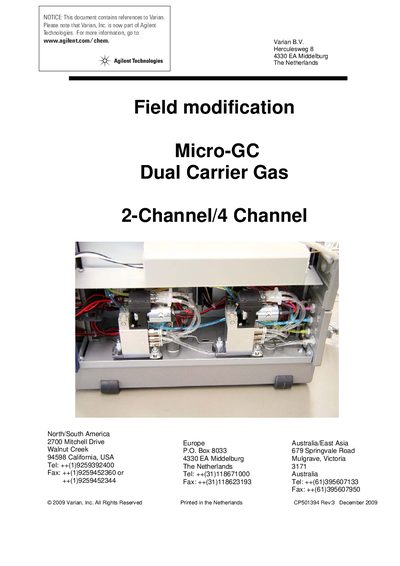

Agilent Field modification Micro-GC Dual Carrier Gas 2-Channel/4 Channel

About this manual

This document provides installation instructions for Field Modification Kit CP501394, which upgrades specific Agilent Micro-GC models to support separate carrier gases. The kit includes a new rear panel, tubing, fittings, pumps, and an instruction guide.

The procedure involves removing the original pump assembly and rear panel, installing the new dual-carrier gas rear panel with bulkhead unions, connecting the included sample pumps, and routing the stainless steel tubing to establish separate carrier gas lines for each channel.

What's inside

• Field modification kit contents
• Rear panel removal and installation
• Pump assembly upgrade
• Tubing connection instructions
• Carrier gas labeling

Frequently asked questions

What items are included in the upgrade kit CP490201?

The kit contains a rear lower panel, bulkhead unions, nuts, SS tubing, Valco fittings, T-pieces, pump assemblies, and instruction guides.

What pressure rating is stated for Carrier 2 on the label?

The label indicates a pressure of 550 kPa for Carrier 2.

What specific tubing size is required for the SS connections?

The kit includes SS tubing with a diameter of 1/16 x 1.0mm.
