This document is the TASK Turbo Pumping System manual, which mainly introduces the product's features and characteristics, such as warranty terms

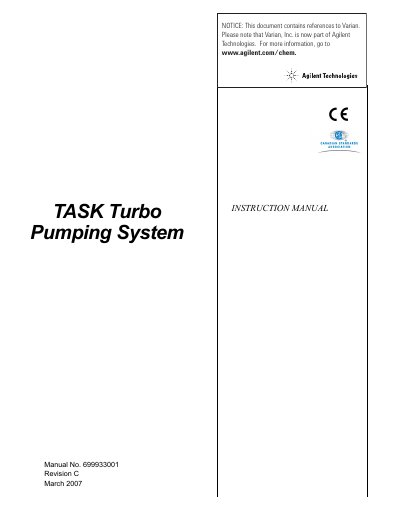

The document serves as an instruction manual for the Varian TASK Turbo Pumping System. It covers safety warnings, system hazards, and EMC requirements before detailing the physical installation of the unit with various flange connections (ConFlat, ISO, KF). The guide explains how to start up the system, perform a one-button configuration procedure, and handle power failures.
| Base Pressure | 5 x 10^-9 mbar |
|---|---|
| Operating Position | Vertical |
| Ambient Temperature | 5 °C to 35 °C |
| Input Voltage/Frequency | 120 or 220 VAC, 50/60 Hz |
| Maximum Input Power (V-81M) | 736 W |
| Bakeout Temperature (CFF) | 120 °C at Inlet |
Products are warranted against defects in materials and workmanship for twelve (12) months from date of shipment.
Claims must include the Product serial number, the date of shipment, and a full description of the circumstances giving rise to the claim.
The system operates within an ambient temperature range of 5 °C to 35 °C.
