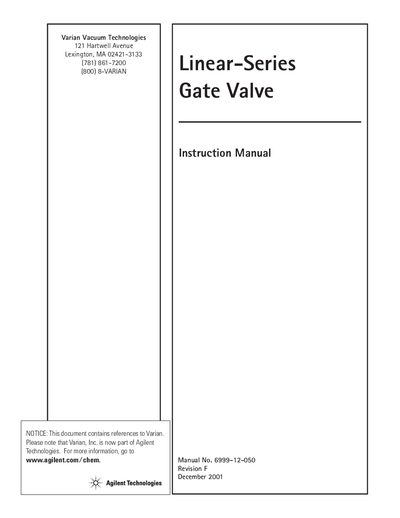

The manual introduces the Linear-Series Gate Valve's usage methods.
This instruction manual covers the Agilent ss1-7200 Linear-Series Gate Valves, which are designed for high- and ultrahigh-vacuum applications. The valves feature a positive lock over-center mechanism guided by hardened steel needle bearings and can be baked in the open position to 200°C (392°F). They operate at pressures from atmosphere to 10^-7 Torr depending on the model selected.
| Bakeout Temperature (Metal Bonnet) | 200°C (392°F) |
|---|---|
| Bakeout Temperature (Pneumatic Actuator) | 200°C (392°F) |
| Solenoid Valve Temperature Rise | 55°C (131°F) |
| Position Indicator Switch Rating | 125/250 VDC at 5 amperes |
| Threaded Ports (Air Cylinder/Solenoid) | -27 FNPT |
The valve must be cleaned by an independent agency skilled and approved in handling contaminated materials before repair.
The customer will be billed for the replacement valve at the then current rate plus shipping charges.
