This document describes the features and characteristics of Vacuum Technologies High Throughput Diffusion Pumps, including hazards, operating principles, operating characteristics, and physical specifications.

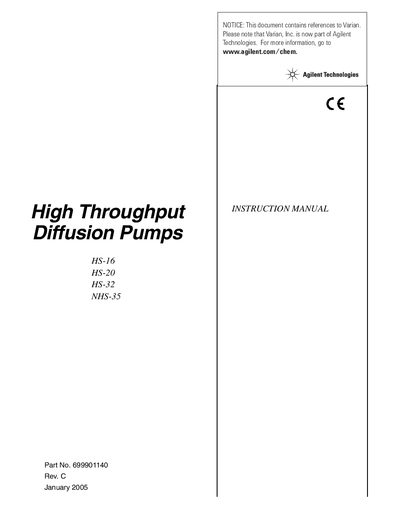

This instruction manual covers the installation, operation, and maintenance of Agilent High Throughput Diffusion Pumps, specifically models HS-16, HS-20, HS-32, and NHS-35. The document provides detailed procedures for unpacking, assembly, system connections, startup, shutdown, and routine maintenance tasks such as cleaning and fluid replacement.
| Pump Type | High Throughput Diffusion Pumps |
|---|---|
| Covered Models | HS-16, HS-20, HS-32, NHS-35 |
| Pump Fluid Type | Santovac 5 Diffusion Pump Fluid |
Products are warranted against defects in materials and workmanship for twelve (12) months from the date of shipment.
It is the responsibility of the Customer to have the product cleaned by an independent agency skilled and approved in handling contaminated materials.
The manual uses standard protocols where Warnings indicate procedures that could lead to serious injury if not followed correctly.
