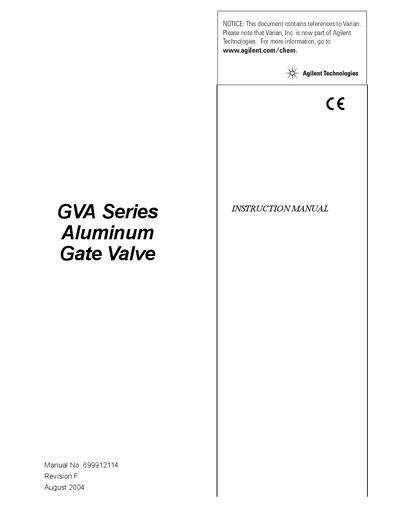

Agilent GVA Series Aluminum Gate Valve Instruction Manual

About this manual

This document serves as an instruction manual for the Agilent GVA Series Aluminum Gate Valve. It provides essential safety warnings regarding system cleanliness to maintain vacuum-tight seals and outlines the warranty terms provided by Vacuum Technologies (now part of Agilent). The guide specifies that misuse in non-clean environments or with toxic chemicals without proper certification will void the warranty.

What's inside

• Hazard and Safety Information
• Introduction
• Installation
• Unpacking
• Mounting Orientation
• Mechanical Connections
• Air and Electrical Connections
• Wiring Instructions - Position Indicators
• Manually Operated Valve
• Pneumatically Operated Valve

Frequently asked questions

What is the warranty period for GVA series valves?

Products are warranted against defects in materials and workmanship for twelve (12) months from date of shipment.

What conditions void the warranty on GVA valves?

The warranty is void if the valve is opened before use, stored improperly, or operated in an environment other than a clean system.

What must accompany a returned valve for repair?

A notarized certificate from an independent agency certifying that the valve has been cleaned and is harmless to humans and environmentally safe.
