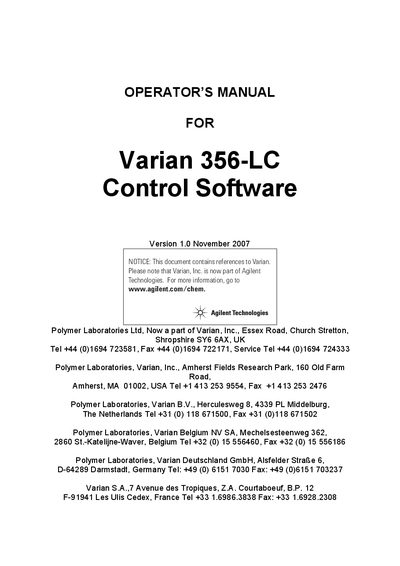

This document is the operator's manual for Varian 356-LC control software version 1.0. It provides specifications of the control software and instructions on how to connect it to a PC. It also includes information on using the Star workstation with the instrument control software.
The document serves as an operator's guide for the control software associated with the Varian 356-LC differential refractometer. It details how to install the PL Instrument Control software from CD and configure it to communicate with the instrument via RS232 serial ports on a PC running Windows 2000 or XP Pro.
The manual covers connecting the detector to a computer, either using a USB-to-Serial adapter or an extra PCI Serial card. It also explains how to use the PL Instrument Configuration Editor to define system components and assign communication ports for remote operation.
| RI range | 1.0~1.75 RIU |
|---|---|
| Sensitivity | LOW (2), MED (4), HIGH (8) mV/uRIU |
| Response time | 0.1-5.0 sec |
| Cell volume | 6 ul |
| Light source | LED 880 nm |
| Power requirements | AC 100~240 V 50/60 Hz |
| PC Requirements | Windows 2000 & XPpro |
The Varian 356-LC Instrument Control Software is only compatible with Windows 2000 and XP Pro.
You can use a USB to Serial Port Adaptor (part # 0860-0620) which provides a Serial Port connection to your PC.
Yes, the detector can be used as a stand-alone HPLC detector through serial communications without Galaxie Chromatography software.
