High density, high performance electrically erasable complex programmable logic device, 32 macrocells, 5 product terms per macrocell, expandable up to 40 per macrocell, 44 pins, 7.5 ns maximum pin-to-pin delay, registered operation up to 125 MHz, enhanced routing resources

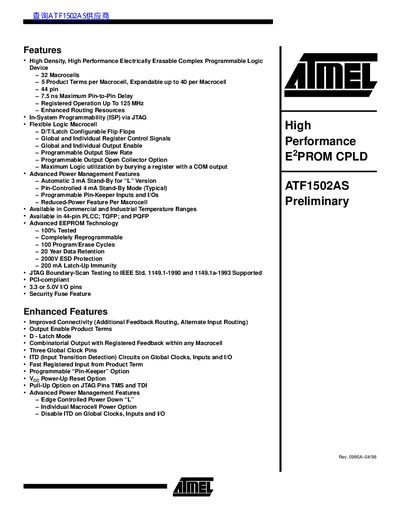

The document describes the ATF1502AS as a high performance, high density Complex Programmable Logic Device (CPLD) utilizing Atmel's proven electrically erasable technology. It features 32 macrocells and up to 36 inputs, integrating logic from various TTL, SSI, MSI, LSI, and classic PLDs.
The maximum pin-to-pin delay is 7.5 ns.
The device supports up to 100 program/erase cycles.
