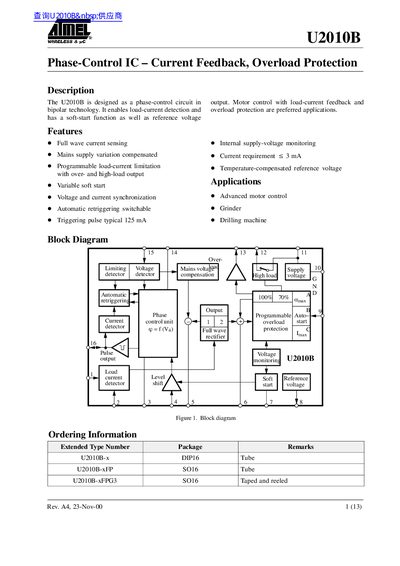

U2010B is a bipolar technology phase-control circuit that enables load-current detection, has a soft-start function as well as reference voltage output. Preferred applications are motor control with load-current feedback and overload protection.
The AIMEL U2010B is designed as a phase-control circuit in bipolar technology. It enables load-current detection and includes features such as soft-start function, reference voltage, full wave current sensing, and mains supply variation compensation.
Preferred applications include advanced motor control for grinders and drilling machines. The IC provides programmable load-current limitation with over- and high-load outputs, variable soft start, and automatic retriggering capabilities.
| Technology | bipolar technology |
|---|---|
| Current requirement | 3 mA |
| Triggering pulse typical output | 125 mA |
| Storage temperature range | -40 to +125 °C |
| Junction temperature range | 125 °C |
The typical triggering pulse output is 125 mA.
The trigger pulse has a typical output current of 125 mA.
The device requires a current of 3 mA from its supply.
The IC can be stored between -40 and +125 °C.
