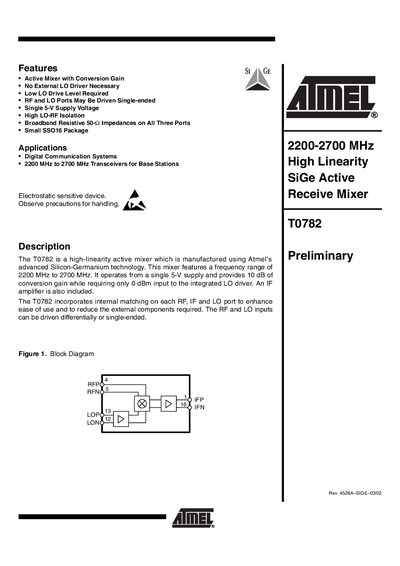

The T0782 is a high-linearity active mixer which is manufactured using Atmel’s advanced Silicon-Germanium technology. This mixer features a frequency range of 2200 MHz to 2700 MHz. It operates from a single 5-V supply and provides 10 dB of conversion gain while requiring only 0 dBm input to the integrated LO driver. An IF amplifier is also included. The T0782 incorporates internal matching on each RF, IF and LO port to enhance ease of use and to reduce the external components required. The RF and LO inputs can be driven differentially or single-ended.
The document details the features of the T0782 SiGe Active Mixer, which operates on a single 5-V supply. It is designed for digital communication systems and transceivers in the 2200 to 2700 MHz range, featuring high LO-RF isolation and broadband resistive impedances.
| Frequency range | 2200 to 2700 MHz |
|---|---|
| Supply voltage | 5 V (4.75 to 5.25 V) |
| Conversion gain | 10 dB (Typical 10.5 dB) |
| Supply current | 150 mA |
| Operating temperature | -40 to +85 °C |
The device features a frequency range of 2200 MHz to 2700 MHz.
No, it does not require an external LO driver because it includes an integrated one.
