This document introduces the products of BNC 50 ohm Amphenol® Caps & Accessories, including product dimensions, model, military standard, etc.

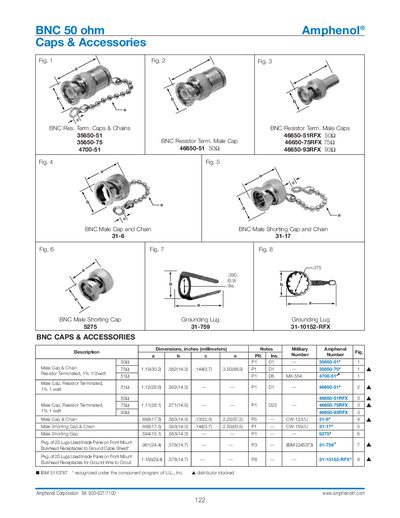

This document provides a catalog of Amphenol BNC 50 ohm Caps & Accessories. It lists specific part numbers such as the Male Cap & Chain (35650-51) and various Resistor Terminated Male Caps.
The text includes dimensional data in inches and millimeters for items like Male Shorting Caps, Grounding Lugs, and Bulkhead Receptacles. It also notes that certain components are recognized under the component program of U.L.L., Inc.
| Resistance (Resistor Terminated) | 50 ohm, 75Q2, 932 |
|---|---|
| Power Rating (Resistor Terminated) | 1 watt |
| Resistance Tolerance | 1% |
The cap has a resistor terminated rating of 1/2 watt.
The package contains 25 lugs used inside panel on front mount bulkhead receptacles.
