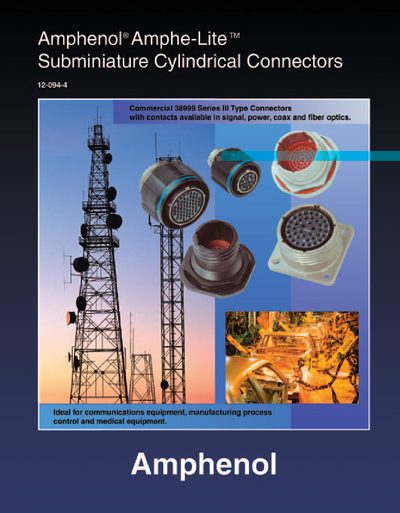

This document is about Amphenol's Amphe-Lite series products. It is Amphenol's ultimate commercial subminiature connector. The document provides detailed information on the product's performance, specifications, plug availability and identification, alternate positioning, plug layout, etc.
The Amphe-Lite series is Amphenol's ultimate commercial subminiature connector line, designed for communications equipment, manufacturing process control, and medical devices. It offers high EMI shielding, corrosion‑resistant composite shells, and a 360° quick‑couple design for fast assembly.
The catalog provides performance criteria, a full list of insert arrangements, shell styles, and accessories such as protection caps and cable clamps. It also describes ordering procedures, optional non‑magnetic and ground‑plane versions, and available finishes (conductive nickel‑plated or black unplated).
| Maximum operating temperature | 125 °C |
|---|---|
| UL RTI rating | 105 °C |
| Available finishes | Conductive electroless nickel plated (Class F) or black unplated (Class U) |
They are rated for operation up to 125 °C.
Yes, the Amphe-Lite connector is UL Recognized, file E115497.
Two finishes are available: conductive electroless nickel‑plated composite (Service Class F) and black composite unplated (Service Class U).
