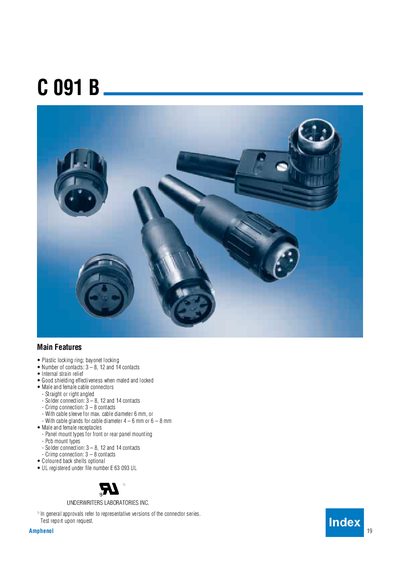

C 091 B is a product of Amphenol. It has 3-8, 12 and 14 contacts and can be connected by soldering and crimping.
The C 091B series offers plastic locking ring and bayonet locking connectors with 3‑8, 12 or 14 contacts, available in straight or right‑angled configurations. Both male and female versions support solder or crimp termination and optional cable sleeves or glands for various cable diameters.
Detailed characteristics include electrical ratings (300 V IEC 60664‑1), IP40 protection, insertion forces around 25 N, and robust mechanical life (up to 1000 mating cycles for gold‑plated contacts). Materials are die‑cast nickel‑plated housing with thermoplastic dielectric and silver or gold‑plated contacts.
| Number of contacts | 3‑8, 12 and 14 |
|---|---|
| IP rating | IP40 |
| Insertion force | 25 N |
| Mating cycles (gold contacts) | >1000 cycles |
| Housing material | Die cast, nickel plated |
| Contact plating | Silver plated / gold plated |
| Locking system | Bayonet |
| Flammability rating | UL 94 VO |
It has an IP40 rating for protection against solid objects.
Gold‑plated contacts are rated for more than 1000 mating cycles.
Both solder and crimp termination techniques are supported.
