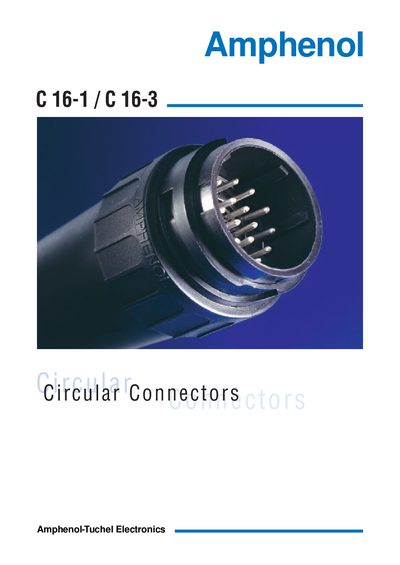

This manual introduces the features and characteristics of Amphenol's C 16-1/C 16-3 circular connectors, including product description, ordering information, approvals, characteristics, derating curves, mounting instructions, male connectors, female receptacles, female cable connectors, male receptacles, accessories etc.
This handbook describes the Amphenol C 16-1 and C 16-3 series of circular connectors. It includes general information, technical data, safety classifications, and a complete list of part numbers for pins, sockets, and accessories.
The document covers termination methods (screw and crimp), wire‑gauge limits, current‑carrying capacity, insulation voltage, IP protection rating, and installation categories. It also provides mounting instructions, derating curves, and approval references for industrial, medical, and telecommunications applications.
