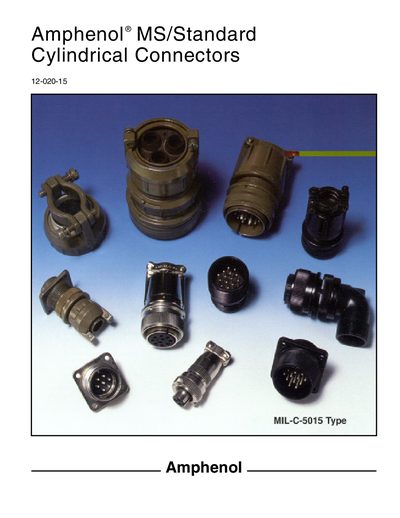

Amphenol MS/Standard Cylindrical Connectors General Information, Class Designations.
This handbook covers Amphenol® MIL‑C‑5015 type cylindrical connectors, focusing on the MS/Standard family. It is organized into three sections: service class information, contact and insert arrangements, and accessories, each with an overview to aid selection.
The document details design characteristics, available shell styles and sizes, contact options, environmental classes, and provides ordering instructions, accessory part numbers, and references to related Amphenol catalogs.
| Operating voltage | 3000 VAC RMS at sea level |
|---|---|
| Shell styles | 5 |
| Shell sizes | 19 |
| Contact arrangements | 286 arrangements from 1 to 104 circuits |
| Contact types | Solder or crimp, sizes 16‑0 accepting 22‑0 AWG |
The connectors are rated for up to 3000 VAC RMS at sea level.
There are five shell styles offered.
