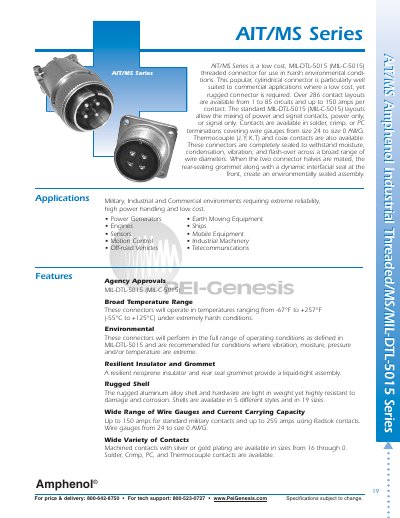

AIT/MS Series is a low cost, MIL-DTL-5015 (MIL-C-5015) threaded connector for use in harsh environmental conditions
The AIT/MS Series is a low‑cost, MIL‑DTL‑5015 (MIL‑C‑5015) threaded connector designed for harsh environments. It offers over 286 contact layouts, supporting 1 to 85 circuits and up to 150 A per contact, with options for solder, crimp, PC terminations, thermocouple and coax contacts. The rugged aluminum alloy shell and resilient neoprene insulator provide liquid‑tight sealing and resistance to moisture, vibration and flash‑over.
The document includes detailed technical specifications, electrical and mechanical data, and a step‑by‑step guide for constructing part numbers and ordering the connectors. It also lists approved materials, plating options, temperature limits, and performance test results for voltage, shock and vibration.
| Operating temperature range | -67 °F to +257 °F (-55 °C to +125 °C) |
|---|---|
| Maximum current per contact | 150 A (standard), 255 A with Radsok contacts |
| Wire gauge range | 24 to 0 AWG |
| Insulation resistance | > 5000 MΩ at 77 °F (25 °C) |
| Number of circuits | 1 to 85 |
Each contact can carry up to 150 A, and up to 255 A when Radsok contacts are used.
They operate from –67 °F (–55 °C) up to +257 °F (+125 °C).
The connectors accept wire gauges from size 24 AWG up to size 0 AWG.
The series offers 286+ contact layouts covering 1 to 85 circuits.
