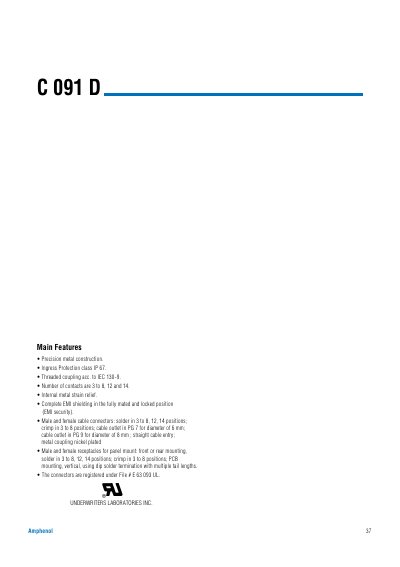

C 091 D is a connector from Amphenol, which features precision metal construction, IP 67 protection, internal metal strain relief, complete EMI shielding, straight cable entry and nickel plated metal coupling
The Amphenol 37C 091 D series is a precision metal connector with IP67 ingress protection and IEC 130‑9 threaded coupling. It offers 3 to 8, 12, and 14 contacts, internal metal strain relief, and complete EMI shielding when fully mated and locked.
The series includes male and female cable connectors (solder or crimp, silver or gold plating) and panel‑mount receptacles (front, rear, or flange) with various cable outlet sizes (PG 7, PG 9). Detailed part numbers, torque specifications (0.5‑1 Nm), and crimping information are provided for each configuration.
| Ingress Protection | IP67 |
|---|---|
| Operating Temperature Range | -40 °C to +85 °C |
| Number of Contacts | 3‑8, 12, 14 |
| Current Rating | 5 A |
| Assembly Torque | 0.5‑1 Nm |
It is rated IP67.
The connector is offered with 3 to 8, 12, and 14 contacts.
A torque of 0.5 to 1 Nm is specified.
Both solder and crimp terminations are supported, with silver or gold plating, and cable outlets of 6 mm (PG 7) or 8 mm (PG 9).
