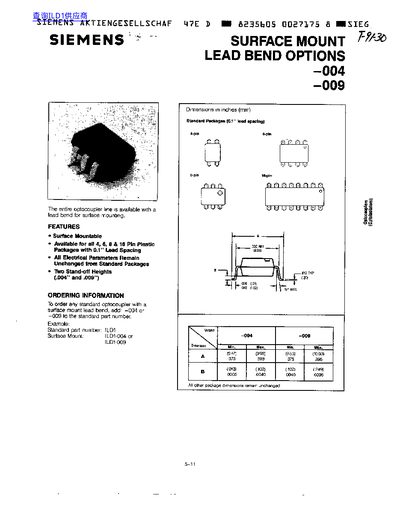

SIEMENS SURFACE MOUNT LEAD BEND OPTIONS -004 -009

About this manual

Siemens offers the entire BigILD 1H optocoupler line with specific lead bends designed for surface mounting. These options are available for all 4, 6, 8, and 16-pin plastic packages with a 0.1-inch lead spacing.

The document specifies two stand-off heights: .009 inches (0.23 mm) and .004 inches (0.10 mm). To order these variants, users add the suffix -004 or -009 to the standard part number. For example, a standard ILD1 becomes ILD1-004 or ILD1-009.

What's inside

• Features
• Ordering Information
• Surface Mount Lead Bend Options
• Dimensions
• Package Types

Frequently asked questions

What lead spacing is required for the BigILD 1H optocoupler surface mount options?

The product is available in plastic packages with a 0.1 inch lead spacing.

How do the electrical parameters of the surface mount version compare to standard packages?

All electrical parameters remain unchanged from standard packages.

What are the two available stand-off heights for the lead bend options?

The product offers two stand-off heights of 0.004 inch and 0.009 inch.
