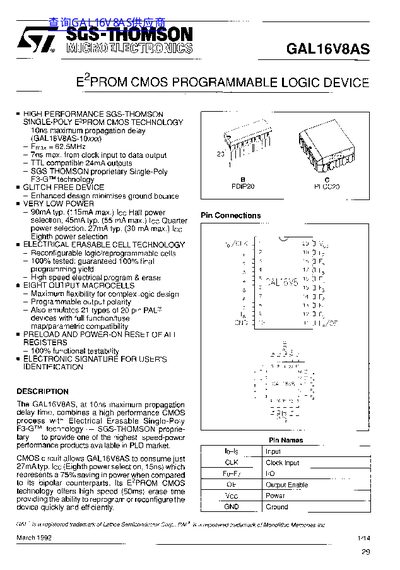

The document describes the GAL16V8AS, a high-speed electrical erasable single-poly ESPROM CMOS technology programmable logic device. It features a maximum propagation delay of 10ns (for the -10 speed grade) and an Fmax of 62.5MHz. The device utilizes SGS-THOMSON proprietary Single-Poly F3-GTM technology to offer glitch-free operation with enhanced design that minimizes ground bounce.
| Maximum Propagation Delay | 10ns |
|---|---|
| Max Frequency (Fmax) | 62.5MHz |
| Typical Supply Current (Eighth Power) | 27mA |
| Number of Output Macrocells | 8 |
The device offers a high speed erase time of 50ms.
It is capable of emulating 21 types of 20 pin PAL devices.
The absolute maximum rating for Vcc is 7V.
