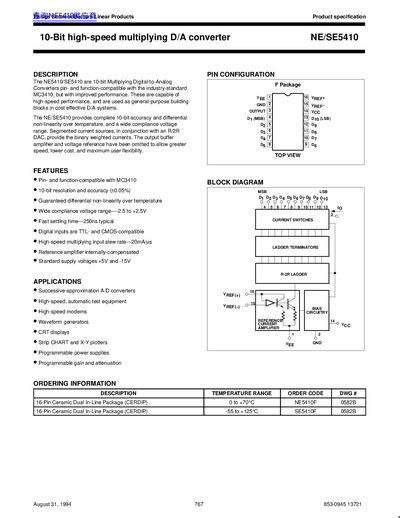

The NE5410/SE5410 is a 10-bit high-speed multiplying digital-to-analog converter that is pin- and function-compatible with the industry-standard MC3410, but with improved performance. These converters have high-speed performance and are used as general-purpose building blocks in cost-effective D/A systems. The NE/SE5410 provides complete 10-bit accuracy and differential non-linearity over temperature, and a wide compliance voltage range. Segmented current sources, in conjunction with an R/2R DAC, provide the binary weighted currents. The output buffer amplifier and voltage reference have been omitted to allow greater speed, lower cost, and maximum user flexibility.
The NE/SE5410 are 10-bit Multiplying Digital-to-Analog Converters that are pin- and function-compatible with the industry-standard MC3410 but offer improved performance. These devices provide complete 10-bit accuracy and differential non-linearity over temperature, utilizing segmented current sources in conjunction with an R/2R DAC.
| Resolution | 10-bit |
|---|---|
| Accuracy | ±0.05% |
| Settling Time | 250ns typical |
| Reference Amplifier Slew Rate | 20mA/µs |
| Operating Temperature (NE5410) | 0 to +70 °C |
| Operating Temperature (SE5410) | -55 to +125 °C |
The devices are pin- and function-compatible with the industry-standard MC3410.
The output voltage compliance ranges from -2.5 to +2.5V.
Yes, the digital inputs are TTL- and CMOS-compatible.
