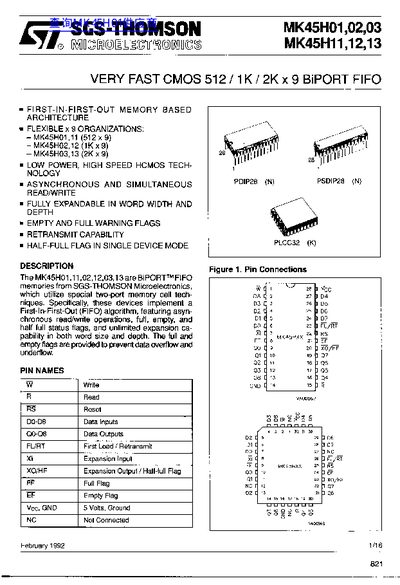

This document describes the MK45H01, MK45H02, and MK45H03 series of Very Fast CMOS Biport FIFO memories manufactured by SGS-THOMSON Microelectronics. These devices utilize a memory-based architecture to implement First-In-First-Out (FIFO) algorithms with asynchronous read/write operations.
| Data Width | 9 bits (x 9) |
|---|---|
| Organizations | MK45H01 (512), MK45H02 (1K), MK45H03 (2K) |
| Technology | HCMOS |
| Read/Write Cycle Time | 35ns (28.5MHz) |
| Supply Voltage | +5V (+/-10%) |
The latency for retrieval of data is approximately one load (write) cycle.
Yes, they are fully expandable in both word size and depth.
