μPC832, 4062 is a low-power J-FET input dual operational amplifier with low input current, high input impedance, low noise, high gain and high operating frequency. It is suitable for amplification and filtering applications in various electronic devices

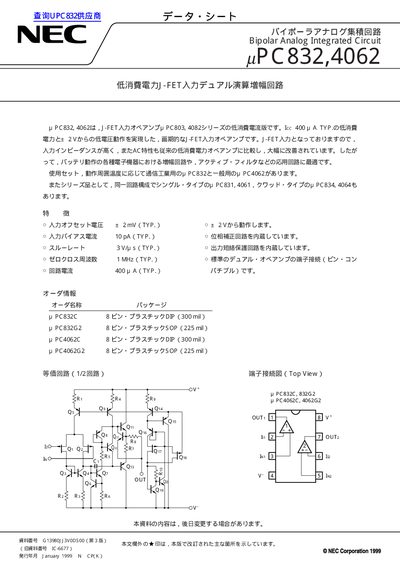

The document describes the NEC PC832 (communication industry use) and PC4062 (general use) as a low-power version of the PC803/PC4082 series. These J-FET input op-amps feature an operating current of 400 nA typical, allowing operation from 2V, making them suitable for battery-operated electronic devices and active filters. This manual is written in Japanese.
| Operating Current (Icc) | 400 nA TYP. |
|---|---|
| Input Offset Voltage | +2 mV TYP. |
| Input Bias Current | 10 pA (TYP.) |
| Slew Rate | 3 V/s TYP. |
| Zero-Cross Frequency | 1 MHz (TYP.) |
The typical circuit current (Icc) for both channels is 400 nA.
The device can operate from a supply voltage of 2V.
Yes, the PC832 is for communication industry use and the PC4062 is for general use.
